Features
Ø Whole lamp waterproof IP65, dustproof, anti-UV and anti-corrosion
Ø High light transmittance, brightness 140-150lm/W, IK10
Ø Easy to install and operate.
Ø Instant start, NO flickering, NO humming
Ø Green and eco-friendly without mercury.

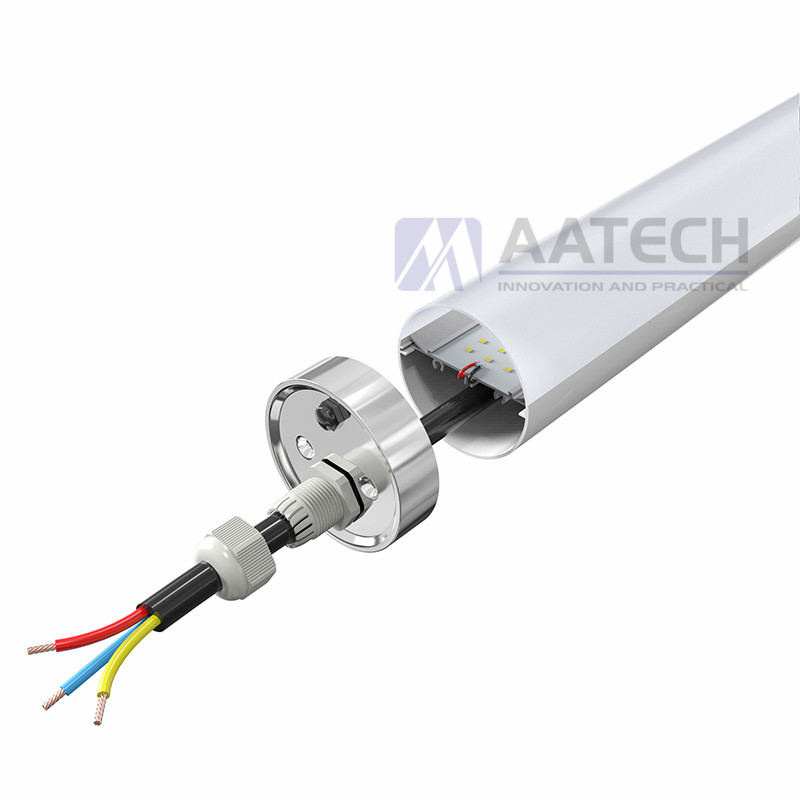

Ø The end caps feature an innovative snap-on mounting method, Eliminates the need for tool to screw and easy on-site construction.

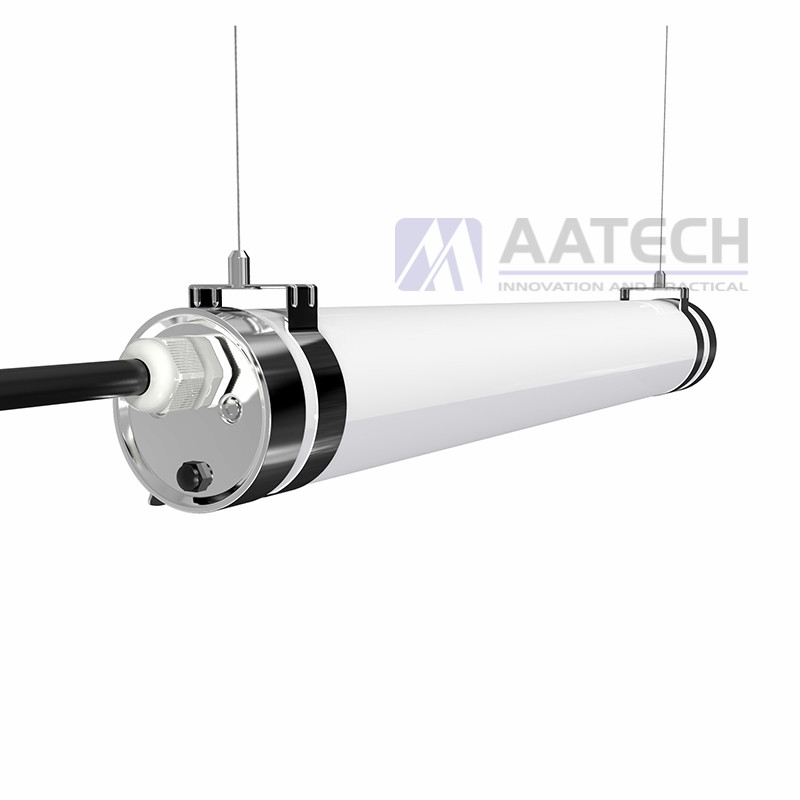

Ø Installation: Suspension, ceiling and other installation methods as needed.
Applications:
- All kinds of farm, warehouse, factory, workshops;
- Exhibition hall, Gymnasium,Supermarkets;

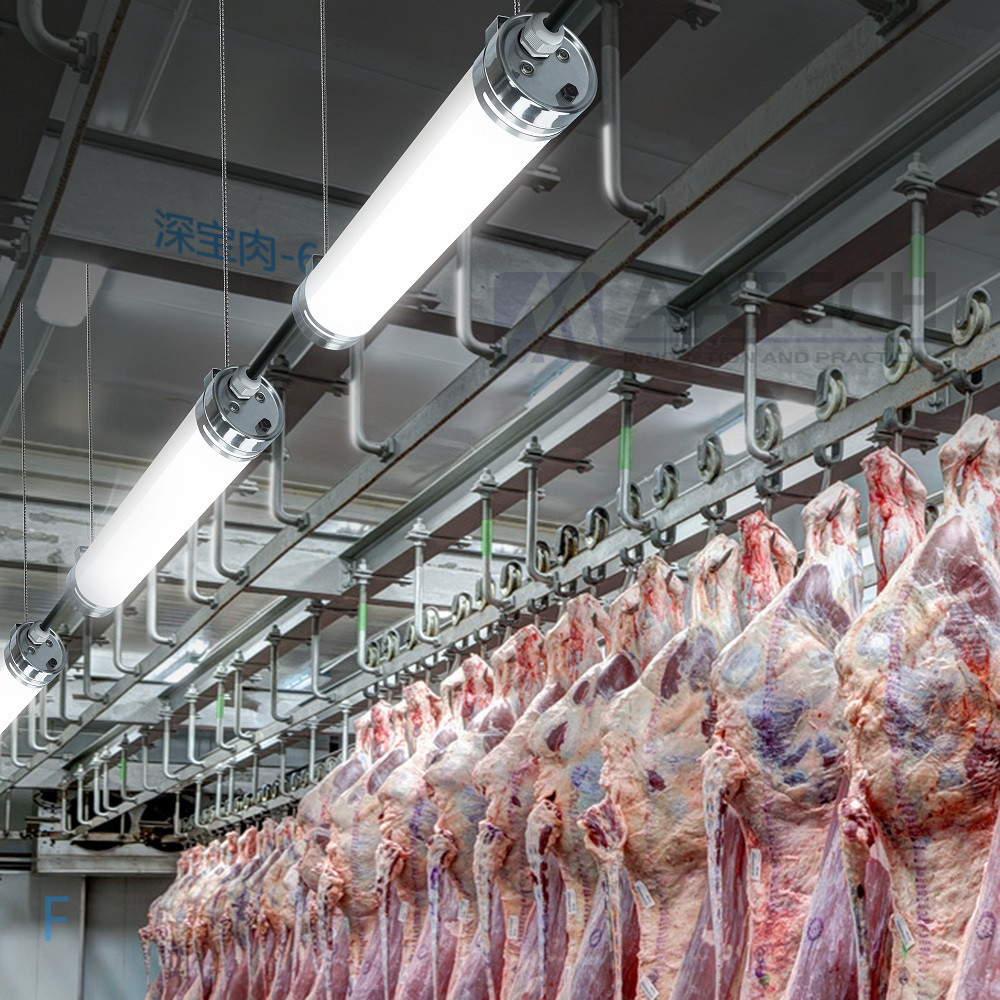

- Food/Meat processing industry,Chicken sheds,Livestock,etc
Product specification
Product name | LED Triproof Light | |||
Item NO. | AATP-600-20W-D | AATP-900-30W-D | AATP-1200-40W-D | AATP-1500-50W-D |
Input Power | 20W | 30W | 40W | 50W |
Dimension | 600*78*78 mm | 900*78*78 mm | 1200*78*78 mm | 1500*78*78 mm |
Technical parameter
Color temp. | 2700K, 4000K, 5000K, 6000K | |||
CRI | 80 | |||
LED Type | SMD2835 | |||
LED QTY | 120 | 168 | 240 | 288 |
LM | 110-120lm/W | 140-150lm/W ±10% | |||
Lumen | 2200lm/3750lm | 3300lm/5250lm | 4400lm/6750lm | 5500lm/8250lm |
Viewing Angle | 120º | |||
Input Voltage | 180-240VAC 50/60Hz | |||
Driver brand | CE approved LED driver | |||
PF | 0.9 | |||
Waterproof | IP65 | |||
Collision grade | IK10 | |||
