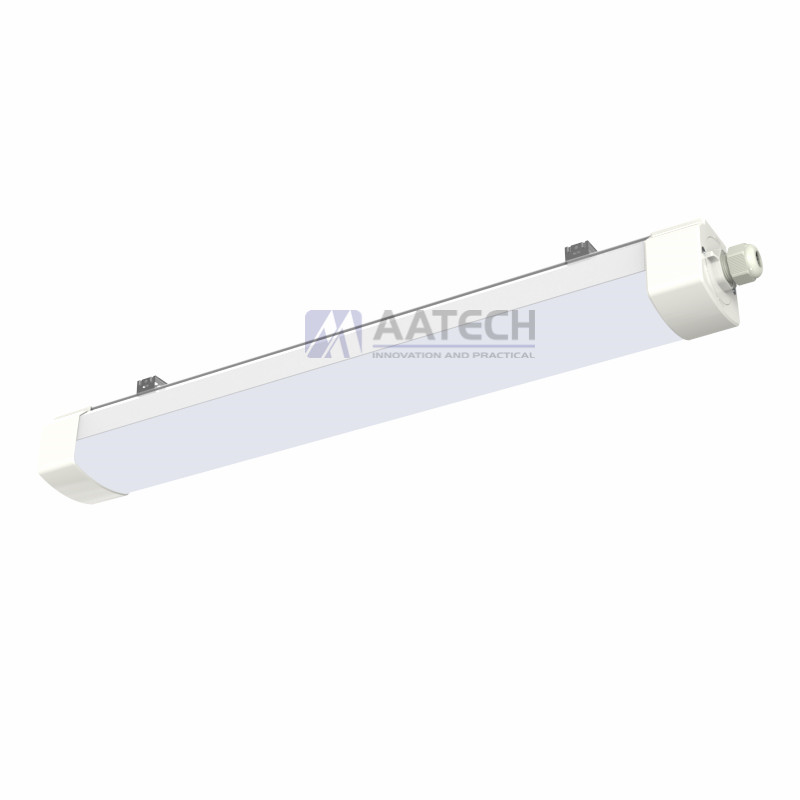

LED triproof light (A type)

Input AC100-277V / AC220-240V
LED chip SMD2835
CRI 80
PF 0.95
Flicker No
THD <15
Waterproof IP65
Working temp. -40-50°C
Consult Now
Parameters
Input
AC100-277V / AC220-240V
LED chip
SMD2835
CRI
80
PF
0.95
Flicker
No
THD
<15
Waterproof
IP65
Working temp.
-40-50°C
I know
FeaturesSpecificationAccessoryPacking

Features


Ø Whole lamp waterproof IP65, dustproof and anti-corrosion

Ø High brightness 140-150lm/W, IK10

Ø Easy to install and operate.

Ø Instant start, NO flickering, NO humming

Ø Green and eco-friendly without mercury.

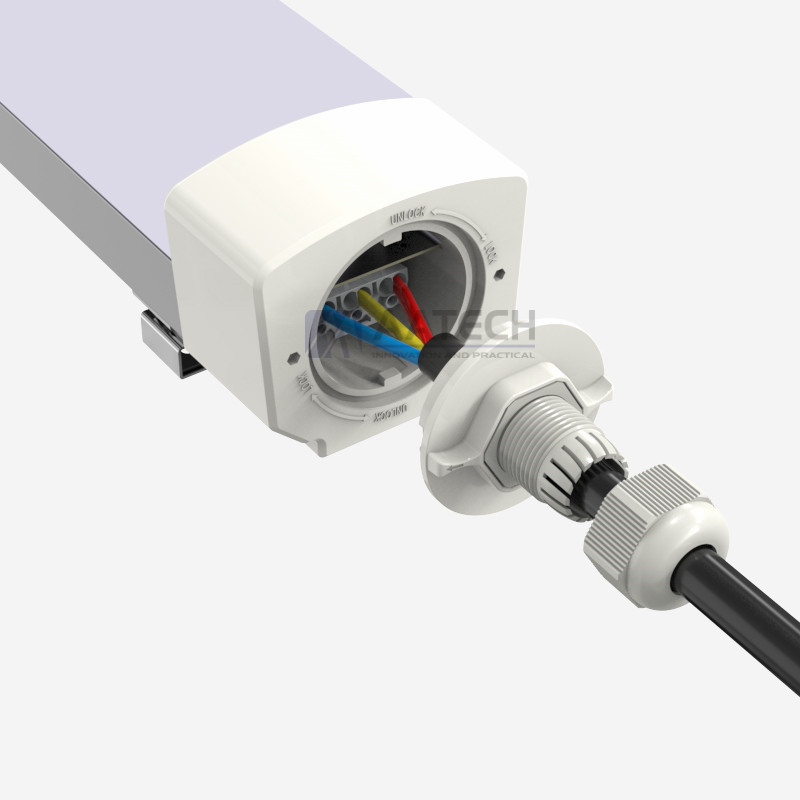

Ø The end caps feature an innovative snap-on mounting method, Eliminates the need for tool to screw and easy on-site construction.

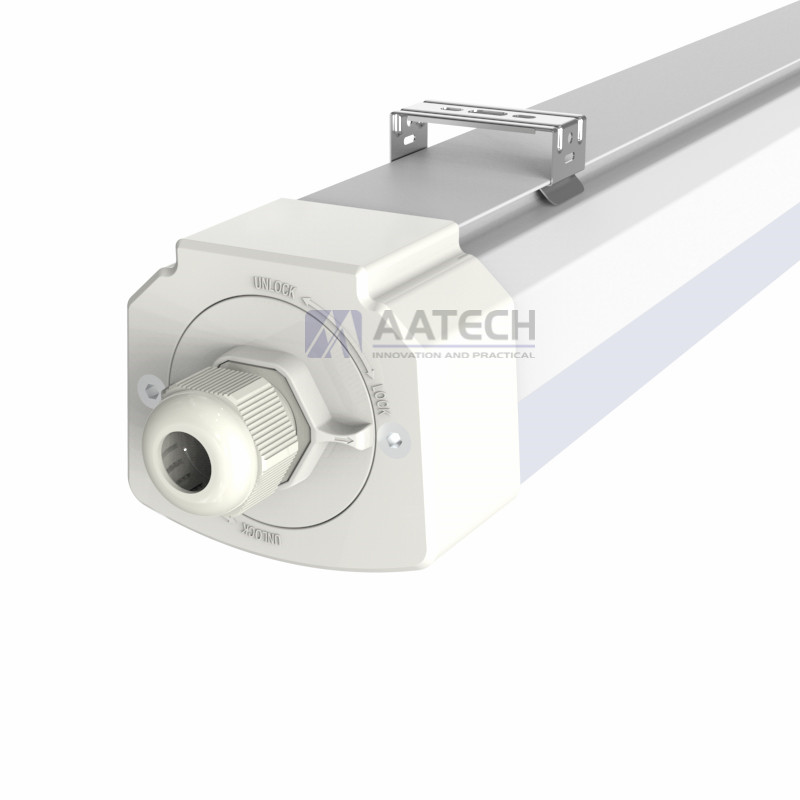

Ø Installation: Suspension, ceiling and other installation methods as needed.


Applications:

- Warehouse, factory, workshops;

- Highway toll station, gas station;

- Exhibition hall, Gymnasium,Supermarkets;

- Food/Meat processing industry,Chicken sheds,Livestock,etc













Product specification


Product name

LED Triproof Light

Item NO.

AATP-600-20W-A

AATP-900-30W-A

AATP-1200-40W-A

AATP-1500-50W-A

Input Power

20W

30W

40W

50W

Dimension

600*77*68 mm

900*77*68 mm

1200*77*68 mm

1500*77*68 mm


Technical parameter

Color temp.

2700-7000K

CRI

>80

LED Type

SMD2835

LED QTY

120

168

240

288

Lumen

110-120lm/W | 140-150lm/W   ±10%

Lumen

2200lm/3750lm

3300lm/5250lm

4400lm/6750lm

5500lm/8250lm

Viewing Angle

120º

Input Voltage

180-240VAC    50/60Hz

Driver brand

CE approved LED driver

PFC

>0.9

Waterproof

IP65

Collision grade

IK10



1200mm 40W IES test file
